  1. Preparing with Graph Data 1.1 Data source checking and organization

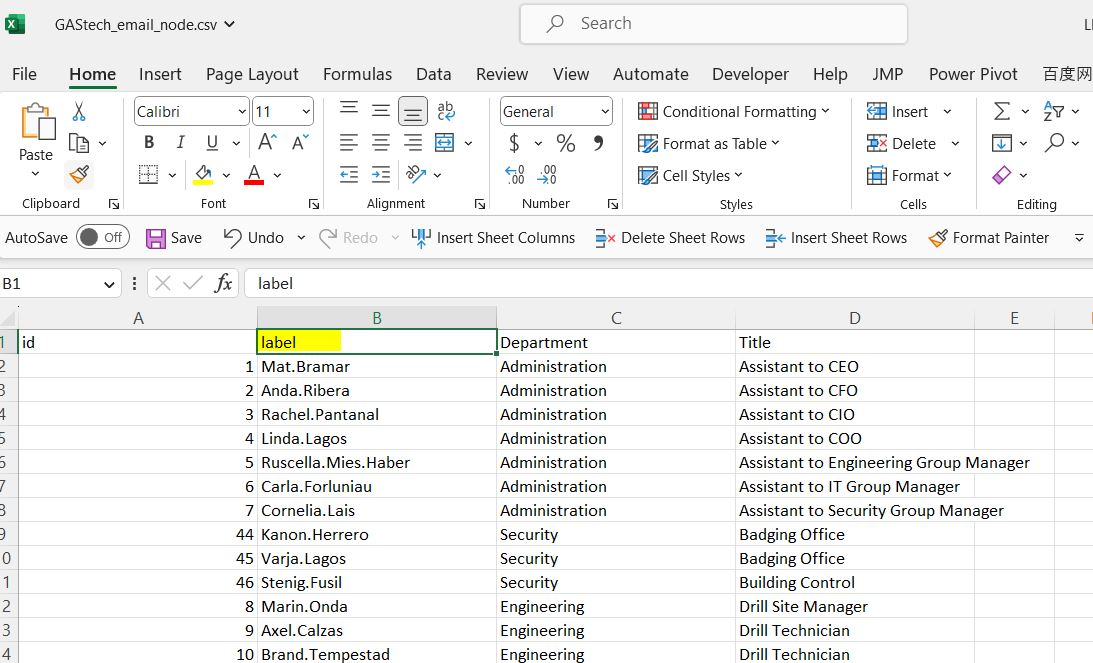

You should always have source and target in the data file, shift and put them as the first 2 columns, source first, target second.

1.2

We need a node mapping file, the ID must be the same as the source and target from the first file. And for the label, it’s there which map the exact label of the nodes to shorten it in case it’s required. Remember to to input all data value, such as (“No data”, “unknown” etc to replace the empty value there.)

  1. Import data
Show the code
    #| warning: false
    #| echo: false
  pacman::p_load(tidyverse,dplyr, ggplot2)
Show the code
  #| warning: false
  #| echo: false
  GAStech_nodes <- read_csv("data/GAStech_email_node.csv")
Rows: 54 Columns: 4
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
chr (3): label, Department, Title
dbl (1): id

ℹ Use `spec()` to retrieve the full column specification for this data.
ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.
Show the code
  GAStech_edges <- read_csv("data/GAStech_email_edge-v2.csv")
Rows: 9063 Columns: 8
── Column specification ────────────────────────────────────────────────────────
Delimiter: ","
chr  (5): SentDate, Subject, MainSubject, sourceLabel, targetLabel
dbl  (2): source, target
time (1): SentTime

ℹ Use `spec()` to retrieve the full column specification for this data.
ℹ Specify the column types or set `show_col_types = FALSE` to quiet this message.

Check through data, there’s format issue. Conver the format:

Show the code
  GAStech_edges <- GAStech_edges %>%
  mutate(SendDate = dmy(SentDate)) %>%
  mutate(Weekday = wday(SentDate,
                        label = TRUE,
                        abbr = FALSE))

Problem Statement

Seafood is a highly traded commodity globally, with over a third of the world’s population relying on it as a primary source of protein. However, illegal, unreported, and unregulated fishing practices have led to overfishing and pose significant threats to marine ecosystems, food security in coastal communities, and regional stability. These activities are associated with organized crime and human rights violations.

FishEye International, a nonpartisan NGO, aims to understand the factors driving illegal fishing. They have collected data over the years to gain insights into this issue. FishEye International is getting help to assist them in interpreting the conflicting data and eventually making recommendations on how to address illegal fishing and its broader impacts.

Goal of this file: Contextualize Data

FishEye has collects online news articles about fishing, marine industry, and international maritime trade. To facilitate their analysis, FishEye uses a natural language processing tool to extract the names of entities (people and businesses) and the relationships between them. We will focus on the following 4 entities:

Entities to investigate

  1. Mar de la Vida OJSC

  2. 979893388

  3. Oceanfront Oasis Inc Carrie

  4. 8327

Data Preprocessing

Load the library and read the json relationship file MC1.

Show the code
  #Load Libraries
  pacman::p_load(jsonlite,tidygraph, ggraph, visNetwork, tidyverse)

  #load Data
  #If we already have jsonlite, we don't need it anymore
  MC1<- jsonlite::fromJSON("data/MC1.json")

After checking MC1, the data is a found to be in a list and it’s not stored in proper structure in R for Graph objects, such as igraph, tidygraph etc. We need to pull out the nodes and links out from the MC1 and store them in R Graph Objects.

By visual inspection of raw data, MC1 Nodes and Links both contain “dataset” column with only “MC1” as value, they can be eliminated.

We picked the desired fields and reorganized the columns using select function.

Show the code
  MC1_nodes <- as.tibble(MC1$nodes) %>%
  select(id, type, country)
Warning: `as.tibble()` was deprecated in tibble 2.0.0.
ℹ Please use `as_tibble()` instead.
ℹ The signature and semantics have changed, see `?as_tibble`.
Show the code
  MC1_edges <- as.tibble(MC1$links) %>%
  select (source, target, type, weight, key)
Show the code
  MC2<- fromJSON("data/mc2_challenge_graph.json")

Cleaning data for nodes

Show the code
  #| code-fold: true
  #| code-summary: "Show code"

    #to check data table
    head(MC1_nodes, n = 30)
# A tibble: 30 × 3
   id                         type         country
   <chr>                      <chr>        <chr>
 1 Spanish Shrimp  Carriers   company      Nalakond
 2 12744                      organization <NA>
 3 143129355                  organization <NA>
 4 7775                       organization <NA>
 5 1017141                    organization <NA>
 6 2591586                    organization <NA>
 7 185040354                  organization <NA>
 8 Faroe Islands Shrimp Shark company      Rio Isla
 9 341411                     organization <NA>
10 21323516                   organization <NA>
# ℹ 20 more rows
Show the code
    # Check summary statistics of the data
    summary(MC1_nodes)
      id                type             country
 Length:3428        Length:3428        Length:3428
 Class :character   Class :character   Class :character
 Mode  :character   Mode  :character   Mode  :character
Show the code
    # Count the number of unique IDs
    unique_id_count <- MC1_nodes %>%
    distinct(id) %>%
    nrow()
    unique_id_count # this is 3417 smaller than 3428, it means there are duplicate fields to remove
[1] 3417
Show the code
    # Count the number of non-NA values in each column
    colSums(is.na(MC1_nodes))
     id    type country
      0     605    2316
Show the code
    # Check unique values in the "type" column
    unique(MC1_nodes$type)
[1] "company"                "organization"           NA
[4] "person"                 "location"               "political_organization"
[7] "vessel"                 "movement"               "event"
Show the code
    # Check unique values in the "country" column
    length(unique(MC1_nodes$country))
[1] 118

Issues found:

  1. The unique_id_count (3417) is smaller than total row count (3428), and different from 3721 nodes as specified in Data notes. Hence, there are duplicate ids in the dataset. We will need to remove duplicate id.
  2. There’s no NA row for ids, however for country or for type, there are NA values. And in some cases there’s only id and both country and type value are missing. We will remove these data as a id value itself alone doesn’t provide much information.
  3. There are at least 118 distinct countries possible, however the country values are not in the same format. Some are fictitious name such as “Nalakond, Rio Isla” which can’t be found in real world, while the rest of them is a country with sequence number such as “Country_271835”.
  4. In this study, we want to focus on names of entities (people and businesses) and the relationships between them, so for other type we may remove them.
Type Issue Example

type “movement” doesn’t relate to people and business, it’s a movement of status changes such as membership change etc.

In this study movement data will be removed.

 movement example

In MC_edges file, where there’s corresponding ids under movement type should be removed as well, as the relationship mapping doesn’t make sense.

For example, months appear in target field, these rows should be analyasis.
Type “Event” doesn’t relate to people and business. We can remove them.

In MC_edges file, where there’s corresponding ids under events type should be removed as well, as the relationship mapping doesn’t make sense.

For example, past years appear in target field, thees rows should be removed from analyasis.

 Value under event type appear in target

Cleaning data for edges

Show the code
  #| code-fold: true
  #| code-summary: "Show code"

    #to check data table
    head(MC1_edges, n = 30)
# A tibble: 30 × 5
   source                   target                       type       weight   key
   <chr>                    <chr>                        <chr>       <dbl> <int>
 1 Spanish Shrimp  Carriers 12744                        ownership   0.900     0
 2 Spanish Shrimp  Carriers 21323516                     partnersh…  0.846     0
 3 Spanish Shrimp  Carriers 290834957                    partnersh…  0.965     0
 4 Spanish Shrimp  Carriers 3506021                      ownership   0.964     0
 5 Spanish Shrimp  Carriers Conventionâ                  family_re…  0.823     0
 6 Spanish Shrimp  Carriers 2262                         family_re…  0.893     0
 7 Spanish Shrimp  Carriers Ashley Davis                 family_re…  0.839     0
 8 Spanish Shrimp  Carriers 924                          family_re…  0.885     0
 9 Spanish Shrimp  Carriers 95                           family_re…  0.887     0
10 Spanish Shrimp  Carriers Ancla Azul Company Solutions membership  0.899     0
# ℹ 20 more rows
Show the code
    # Check summary statistics of the data
    summary(MC1_edges)
    source             target              type               weight
 Length:11069       Length:11069       Length:11069       Min.   :0.0253
 Class :character   Class :character   Class :character   1st Qu.:0.8337
 Mode  :character   Mode  :character   Mode  :character   Median :0.8715
                                                          Mean   :0.8731
                                                          3rd Qu.:0.9148
                                                          Max.   :0.9923
      key
 Min.   : 0.0000
 1st Qu.: 0.0000
 Median : 0.0000
 Mean   : 0.2041
 3rd Qu.: 0.0000
 Max.   :21.0000
Show the code
    #To find duplicate rows in the MC1_edges data frame based on the "source" and "target" and "type" columns
    #the subset() function is used to select only the "source" and "target" columns from MC1_edges. The duplicated() function is then applied to identify rows with duplicated combinations of "source" and "target". By using the | (OR) operator with duplicated(subset(...)) and duplicated(subset(...), fromLast = TRUE), it finds both the first occurrence and the last occurrence of the duplicated rows.

    duplicate_rows <- MC1_edges %>%
    filter(duplicated(subset(., select = c("source", "target", "type" ))) |
           duplicated(subset(., select = c("source", "target" , "type")), fromLast = TRUE))

    # check if there are any NA values in each column
    colSums(is.na(MC1_edges))
source target   type weight    key
     0      0      0      0      0
Show the code
    unique(MC1_edges$key)
 [1]  0  1  2  3  4  5  6  7  8  9 10 11 12 13 14 15 16 17 18 19 20 21
Show the code
    unique(MC1_edges$type)
[1] "ownership"           "partnership"         "family_relationship"
[4] "membership"

In edge dataset, no NA rows for each of the column. For duplicates, though the rest of the values are the same, but their key and weight are different.

Handling missing values and not useful value

By checking MC1_nodes, quite a number of rows only have id, there’s no type and country information. Delete these type of nodes as they do not add value to the analysis.

Show the code
  #| code-fold: true
  #| code-summary: "Show code"

  # only keep distinct idS
  # Filter out rows with NA values in both country and type columns
  MC1_nodes_unique<- MC1_nodes %>%
  distinct(id, .keep_all = TRUE) %>%
  filter(!is.na(country) | !is.na(type))

  # further filter to remove the rows in MC1_nodes_unique where the type column is either "movement" or "event"
  MC1_nodes_cleaned <- MC1_nodes_unique %>%
  filter(!type %in% c("movement", "event"))

After filtering, only 2721 entries left in MC1_nodes_cleaned to be used in the analytics.

Data consistency in entity names and relationships

Here we need to remove rows in edge, where either source or target id is not found in nodes. Nodes id should be the Primary Key for all source/target entries in Edge, filtering is required in edge dataset to only keep source/target with the ids appeared in node dataset.

Show the code
  #| code-fold: true
  #| code-summary: "Show code"

  MC1_edges_cleaned <- MC1_edges %>%
  filter(source %in% MC1_nodes_cleaned$id, target %in% MC1_nodes_cleaned$id)

  #Review the clearned data:
  glimpse(MC1_edges_cleaned)
Rows: 6,490
Columns: 5
$ source <chr> "Spanish Shrimp  Carriers", "Spanish Shrimp  Carriers", "Spanis…
$ target <chr> "12744", "21323516", "290834957", "3506021", "2262", "Ashley Da…
$ type   <chr> "ownership", "partnership", "partnership", "ownership", "family…
$ weight <dbl> 0.9001396, 0.8458973, 0.9648761, 0.9642126, 0.8931523, 0.839306…
$ key    <int> 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, …
Show the code
  glimpse(MC1_nodes_cleaned)
Rows: 2,721
Columns: 3
$ id      <chr> "Spanish Shrimp  Carriers", "12744", "143129355", "7775", "101…
$ type    <chr> "company", "organization", "organization", "organization", "or…
$ country <chr> "Nalakond", NA, NA, NA, NA, NA, NA, "Rio Isla", NA, NA, NA, "C…

The number of rows reduce from 11069 to 6490 after filtering.

Entity Visualization

create The tbl_graph object

Using tidygraph package, we will build tidygraph network graph data.frame. The graph is directed with source and target specificed.

(Planning: Display entities relationship as we focused (graph network))

Show the code
peopleEntityRelationship <- tbl_graph(nodes = MC1_nodes_cleaned,
                           edges = MC1_edges_cleaned,
                           directed = TRUE)

  peopleEntityRelationship
# A tbl_graph: 2721 nodes and 6490 edges
#
# A bipartite multigraph with 204 components
#
# A tibble: 2,721 × 3
  id                       type         country
  <chr>                    <chr>        <chr>
1 Spanish Shrimp  Carriers company      Nalakond
2 12744                    organization <NA>
3 143129355                organization <NA>
4 7775                     organization <NA>
5 1017141                  organization <NA>
6 2591586                  organization <NA>
# ℹ 2,715 more rows
#
# A tibble: 6,490 × 5
   from    to type        weight   key
  <int> <int> <chr>        <dbl> <int>
1     1     2 ownership    0.900     0
2     1    10 partnership  0.846     0
3     1    49 partnership  0.965     0
# ℹ 6,487 more rows
Show the code
  peopleEntityRelationship %>%
  activate(edges) %>%
  arrange(desc(weight))
# A tbl_graph: 2721 nodes and 6490 edges
#
# A bipartite multigraph with 204 components
#
# A tibble: 6,490 × 5
   from    to type                weight   key
  <int> <int> <chr>                <dbl> <int>
1  1186     3 partnership          0.987     0
2   912  1345 ownership            0.986     0
3  1696  2009 membership           0.985     0
4  1397   748 family_relationship  0.984     0
5   341     3 partnership          0.984     0
6  2035  2032 partnership          0.983     0
# ℹ 6,484 more rows
#
# A tibble: 2,721 × 3
  id                       type         country
  <chr>                    <chr>        <chr>
1 Spanish Shrimp  Carriers company      Nalakond
2 12744                    organization <NA>
3 143129355                organization <NA>
# ℹ 2,718 more rows

Interactive Exploration

(Planning: Interactive Exploration: Develop an interactive interface that allows analysts to explore the entities and their context dynamically. Enable functionalities like filtering, highlighting, and zooming to focus on specific entities or connections of interest. This interactive approach will help analysts identify patterns, anomalies, and potential links to illegal fishing more efficiently.)

Show the code
  # ggraph(peopleEntityRelationship, layout="sparse") +  #
  # geom_edge_link() +
  # geom_node_point()
